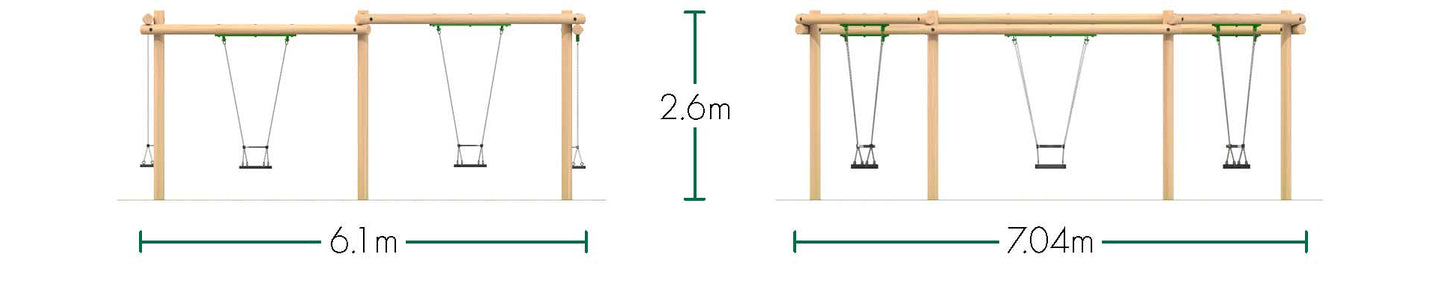

Dimensions
Length: 7040mm
Width: 6139mm
Height: 2620mm
Free Fall Height: 1400mm
Safety Surfacing Area Required: 58.26m2
Safety Surface Area Dimensions: 12.61 x 11.8m
Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.
Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
Also available with Steel feet
(Additional charges apply)
