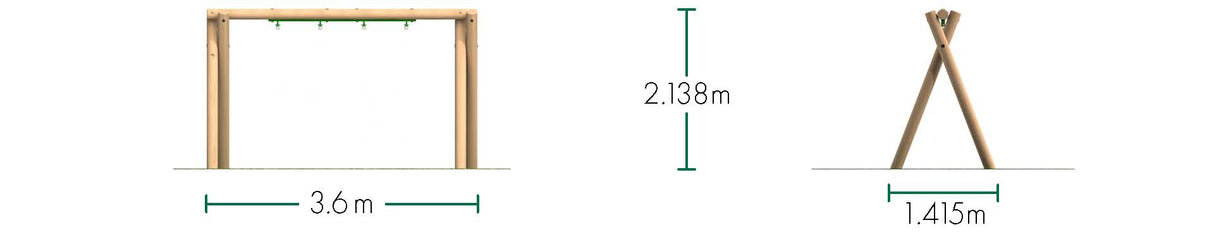

Dimensions
Length: 3610mm
Width: 1415mm
Height: 2138mm
Free Fall Height: 1200mm
Safety Surfacing Area Required: 17.43m2
Safety Surface Area Dimensions: 6.052 x 2.88m
Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.
Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
