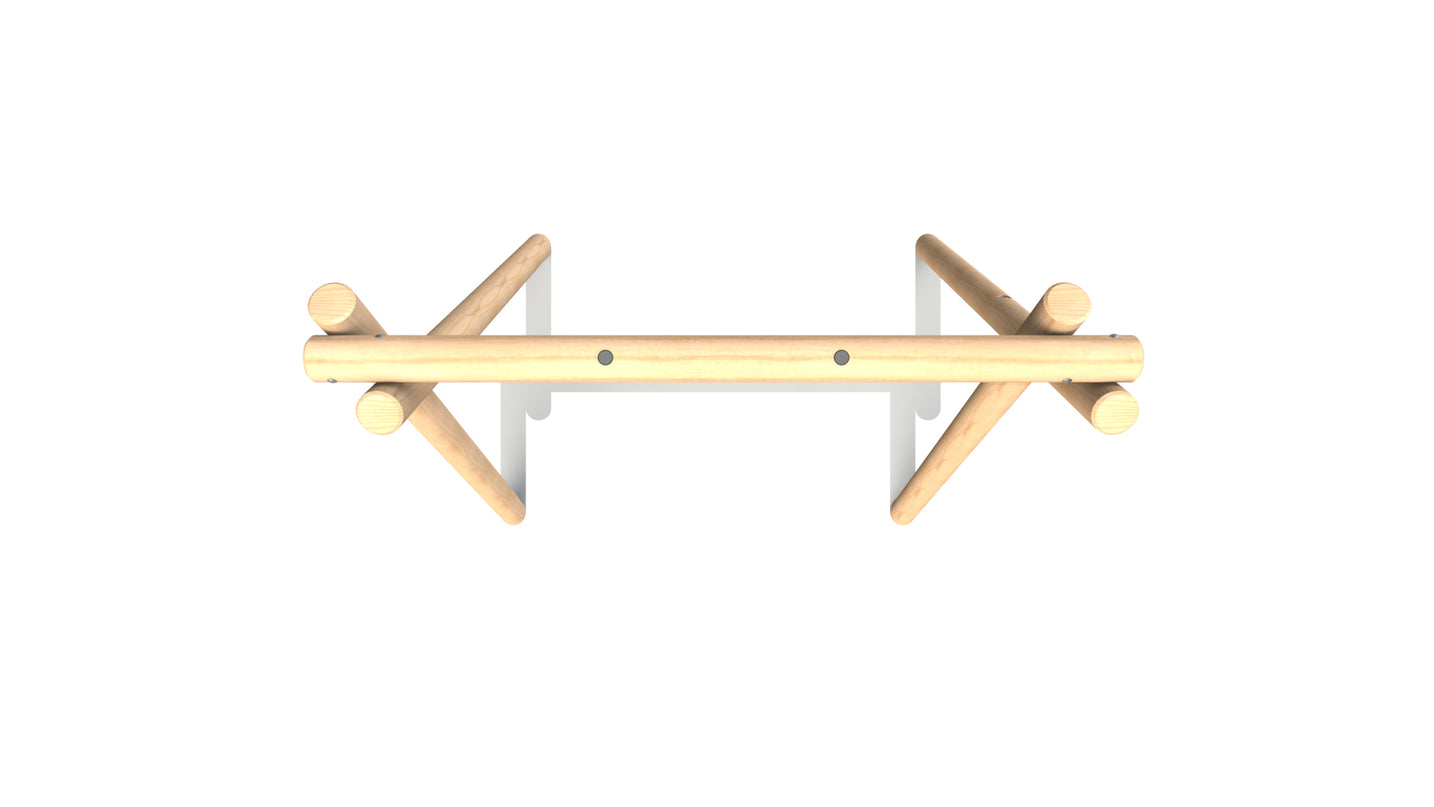

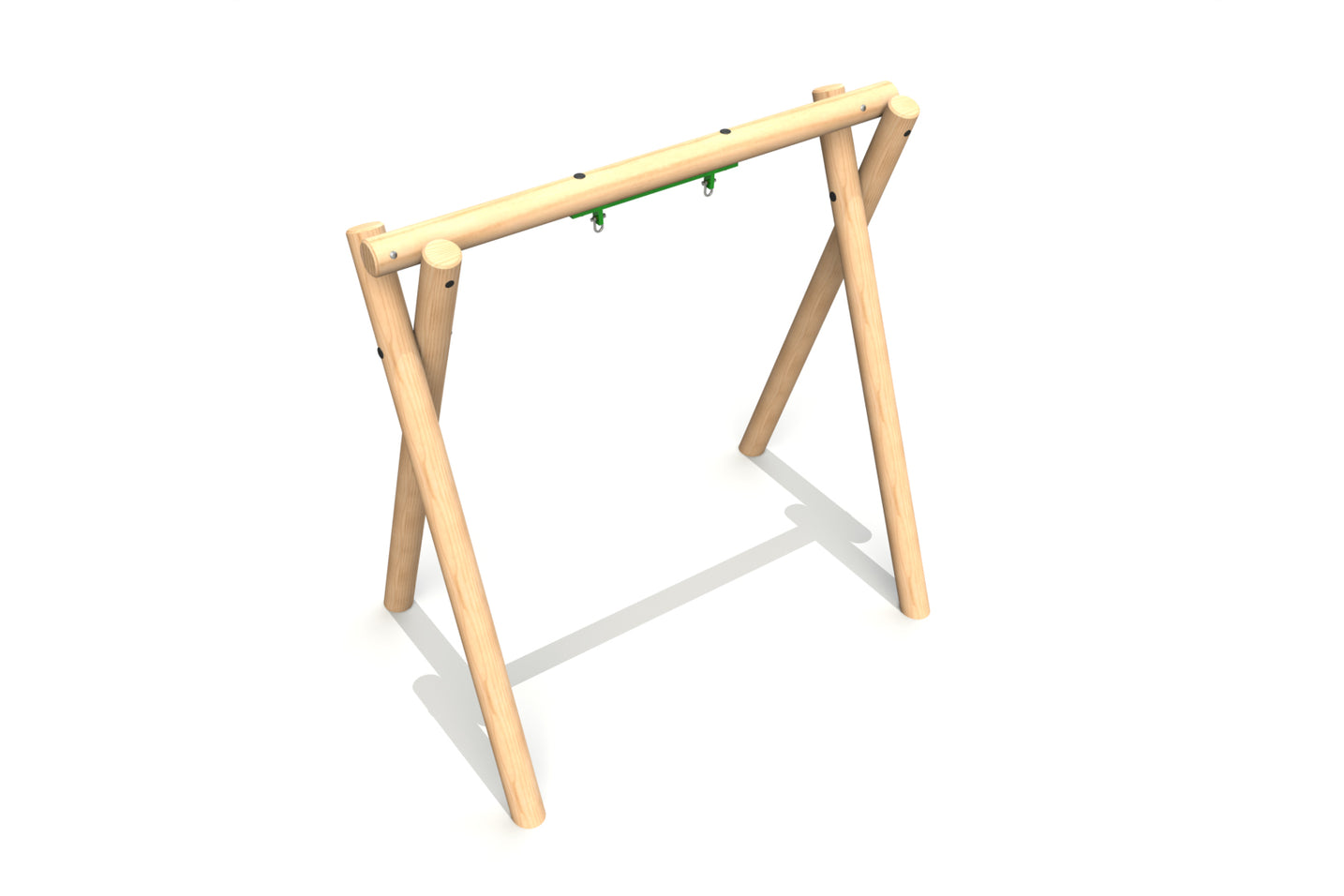

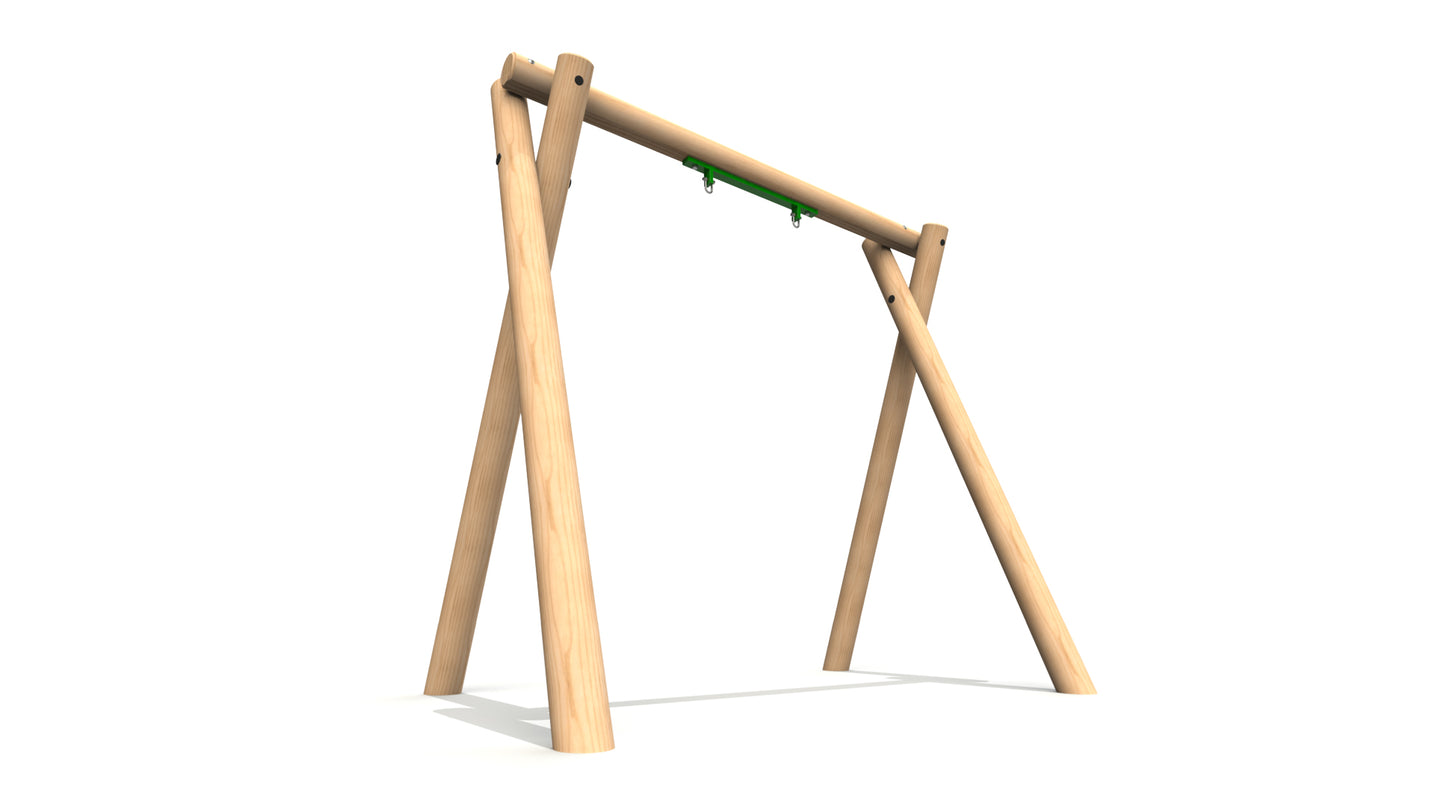

Timber Single Swing Frame Only (2.4m)

SKU: 3036

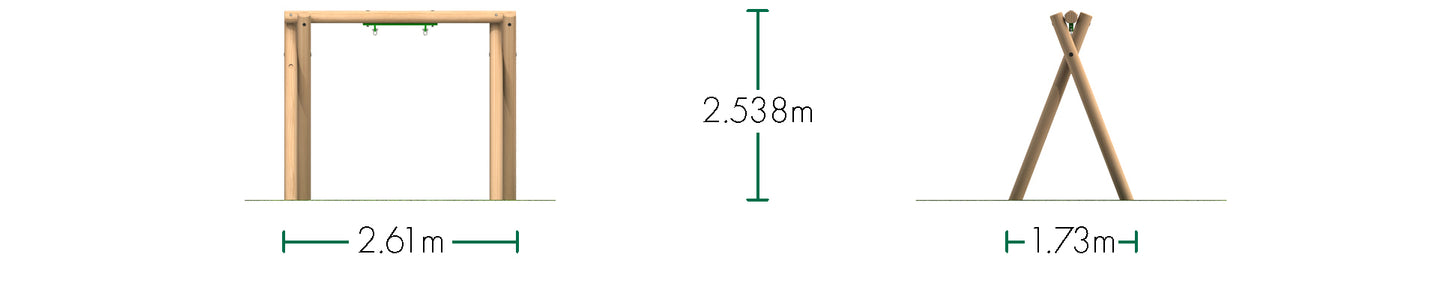

Length: 2610mm

Width: 1730mm

Height: 2538mm

Free Fall Height: 1400m

Safety Surfacing Area Required: 11.73m2

Safety Surface Area Dimensions: 6.7 x 1.75m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.7m (from 6.7m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles

Also available with Steel Feet

(Additional charges apply)
