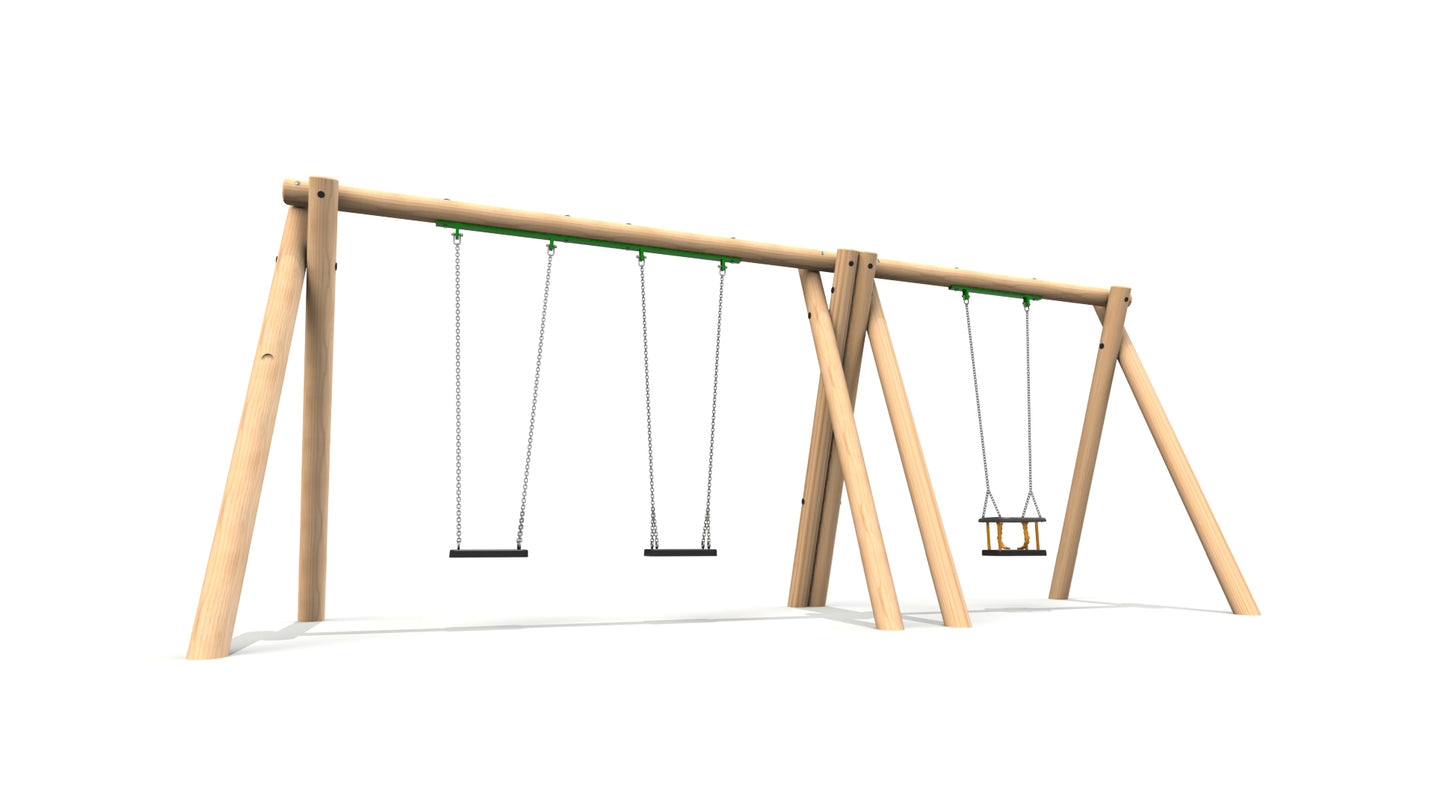

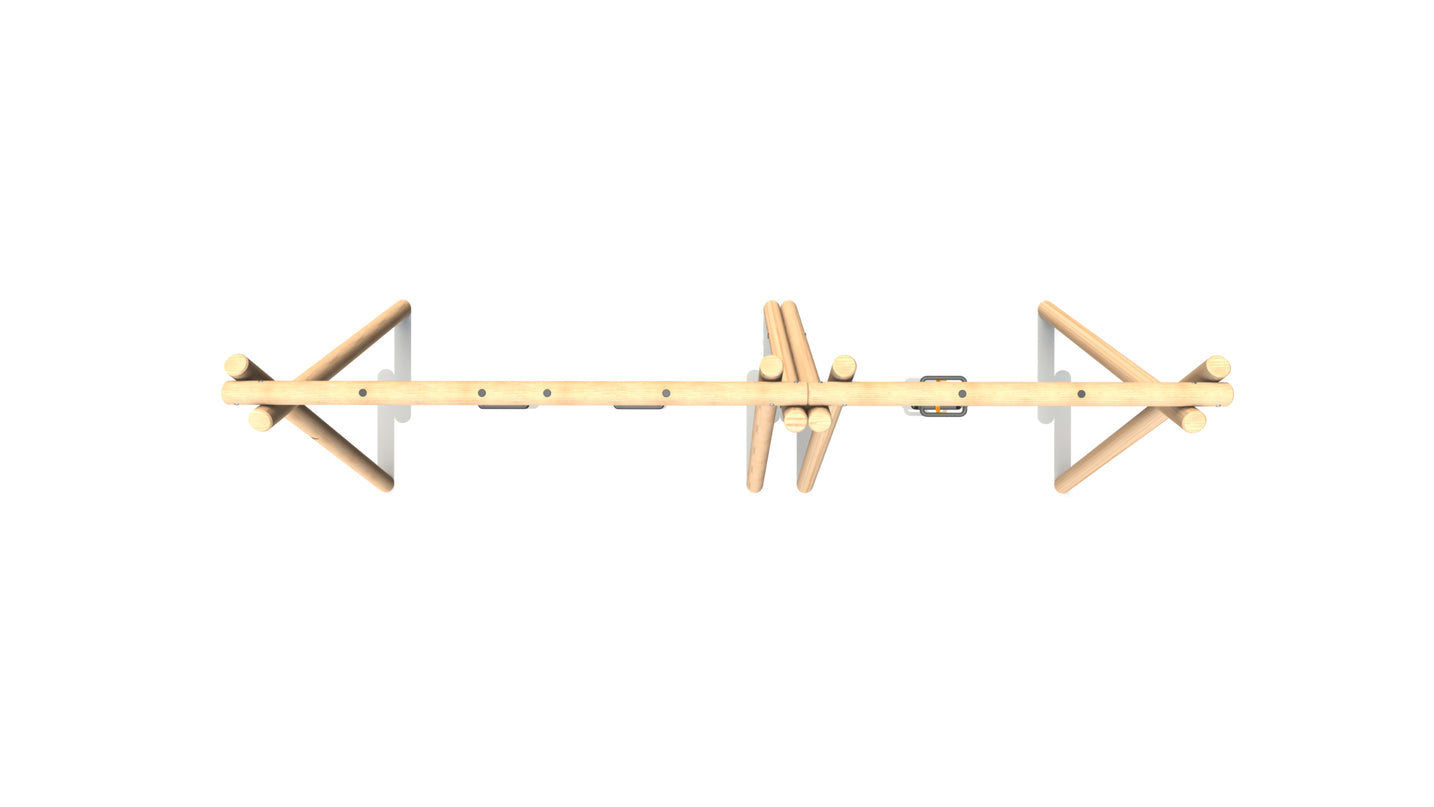

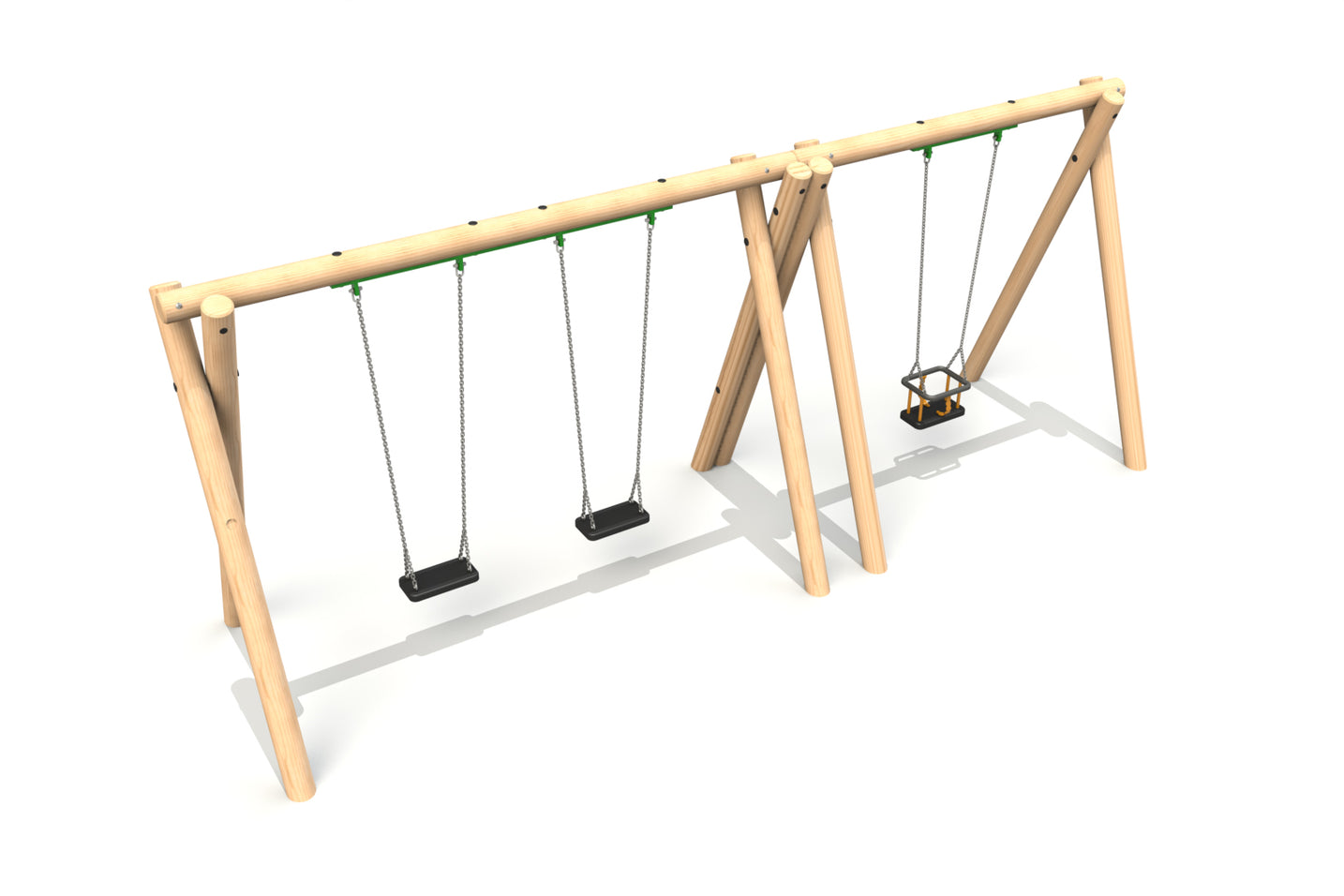

2 Flat & 1 Cradle Seat (2.4m)

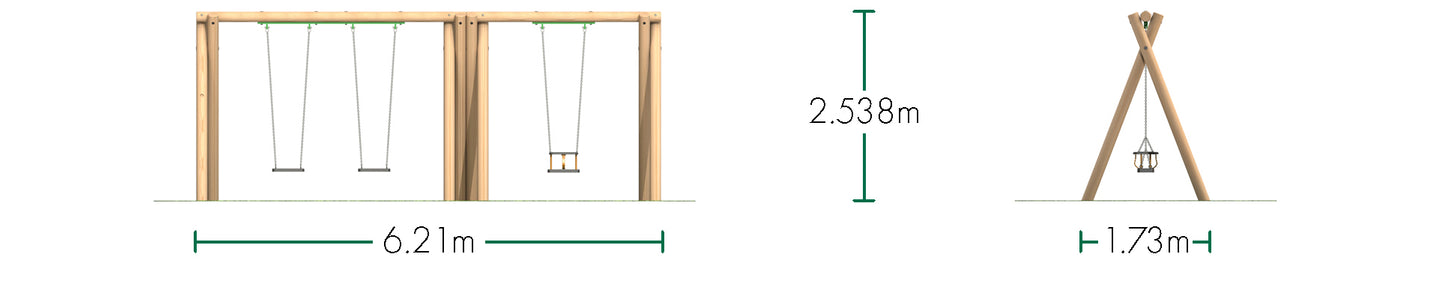

Dimensions

Width: 6220mm

Depth: 1730mm

Height: 2538mm

Free Fall Height: 1400mm

Safety Surfacing Area Required: 31.02m2

Safety Surface Area Dimensions: 6.7 x 4.63m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.7m (from 6.7m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.

Also available with Steel Feet

(Additional charges apply)
