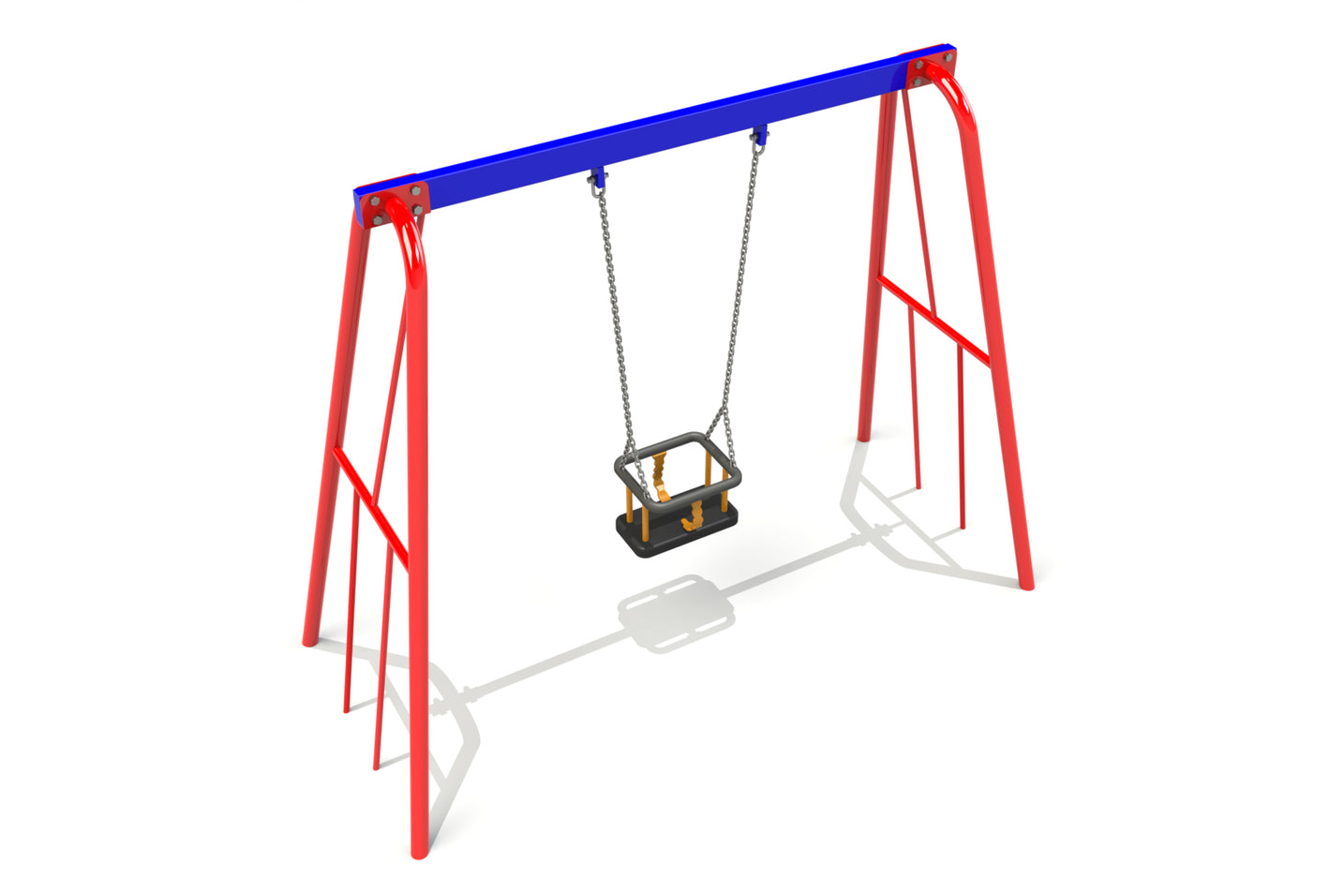

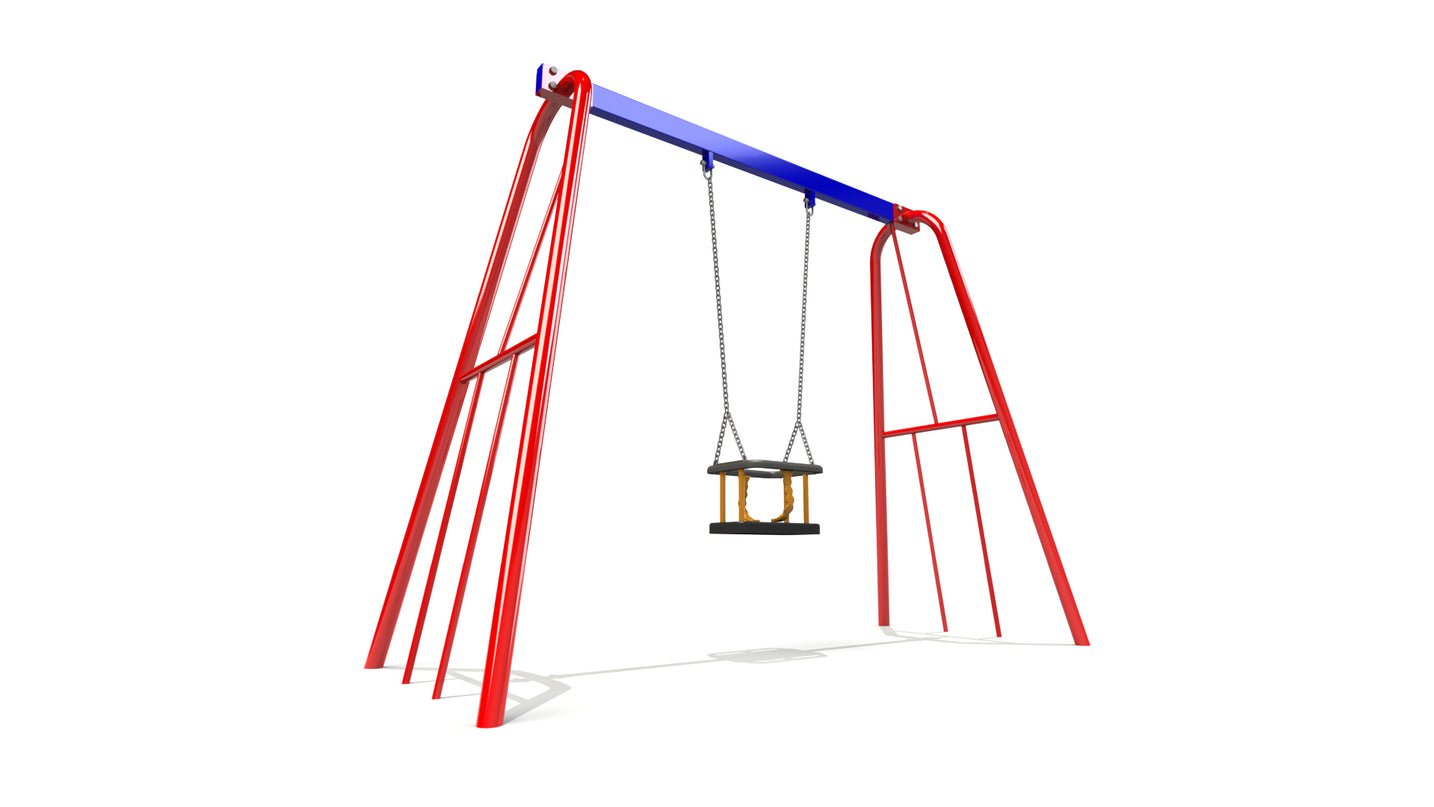

1 Cradle Seat (2.0m)

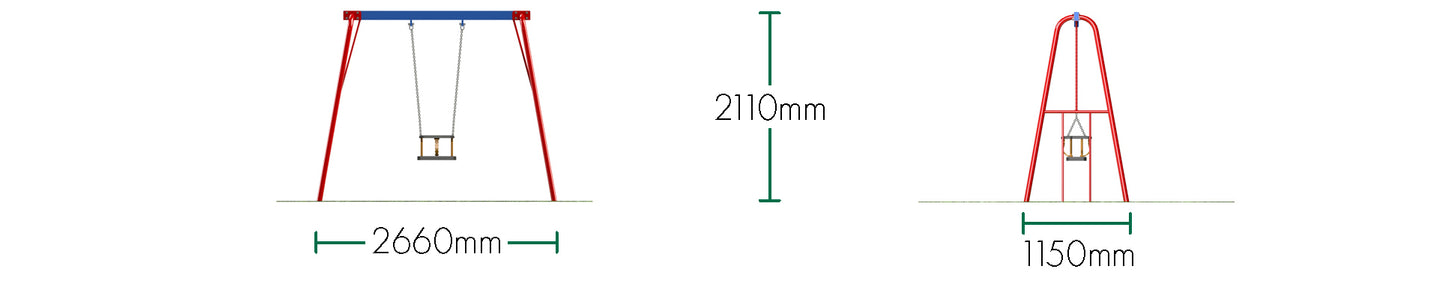

Dimensions

Width: 2660mm

Depth: 1150mm

Height: 2110mm

Free Fall Height: 1220mm

Safety Surfacing Area Required: 10.59m2

Safety Surface Area Dimensions: 6.052 x 1.75m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
